A bathroom layout has to allow room for everyday movement as well as the fittings themselves. In this refurbishment, we replaced the bath with an open shower and brought storage beneath the basin, combining a black grid screen, grey veined panels and a warm wood-effect feature behind the mirror.
The original room already had a bath with a shower screen, a pedestal basin and tall cupboard storage. The changes give those everyday functions a different arrangement, while the timber window and door retain familiar features of the room.
The photographs show the room before later follow-up work was discussed.
A shower sized with the space beside it in mind

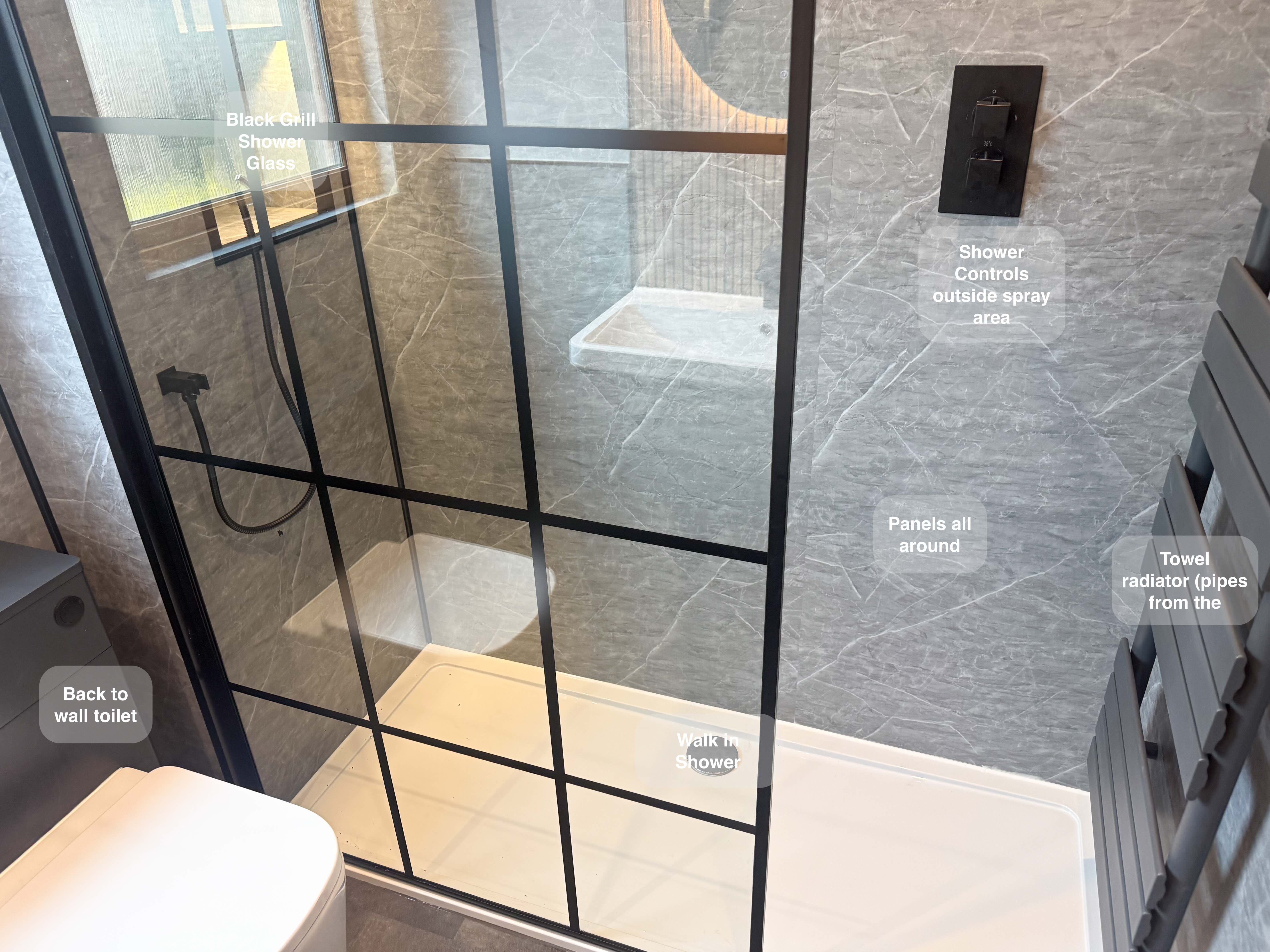

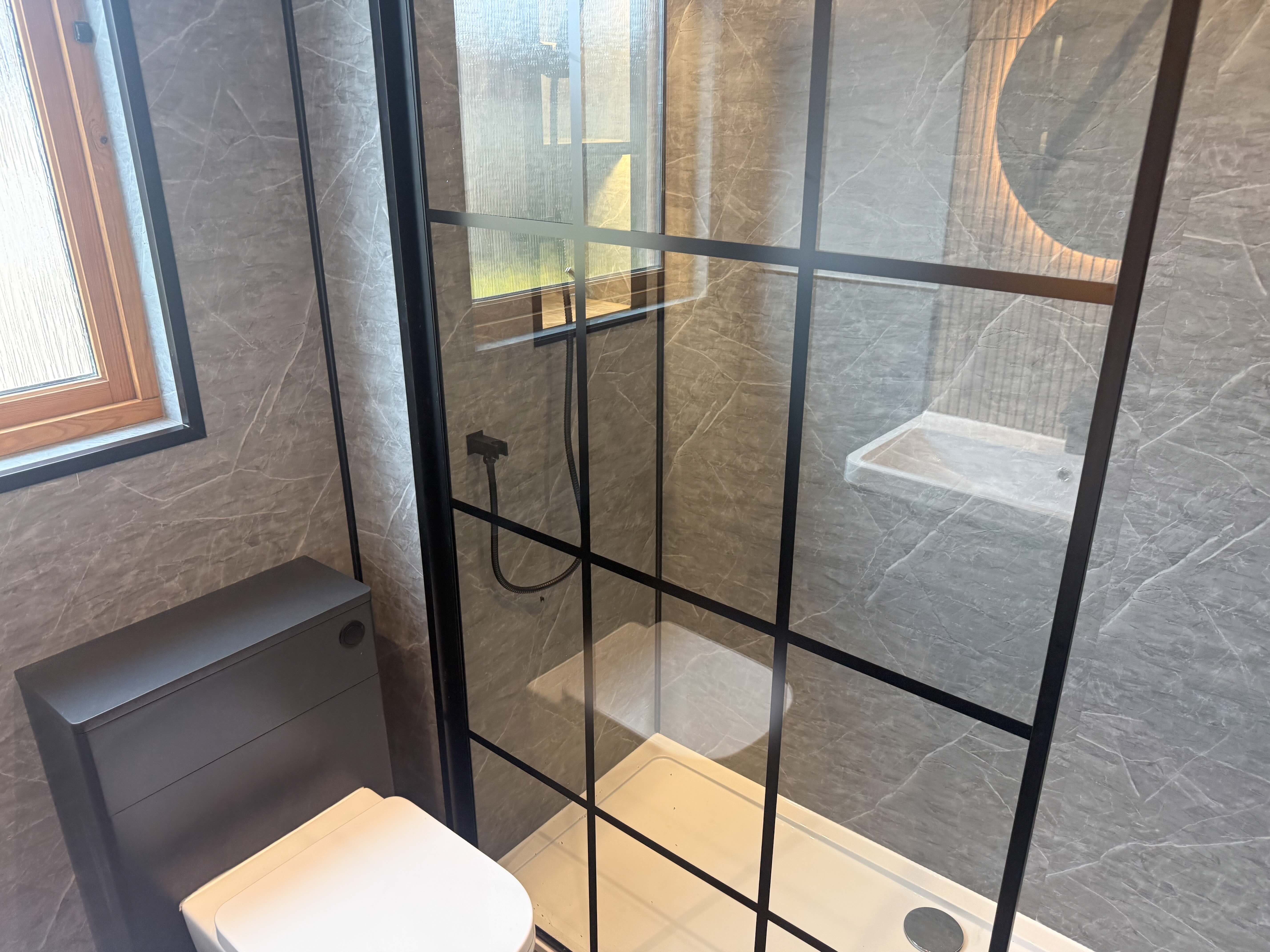

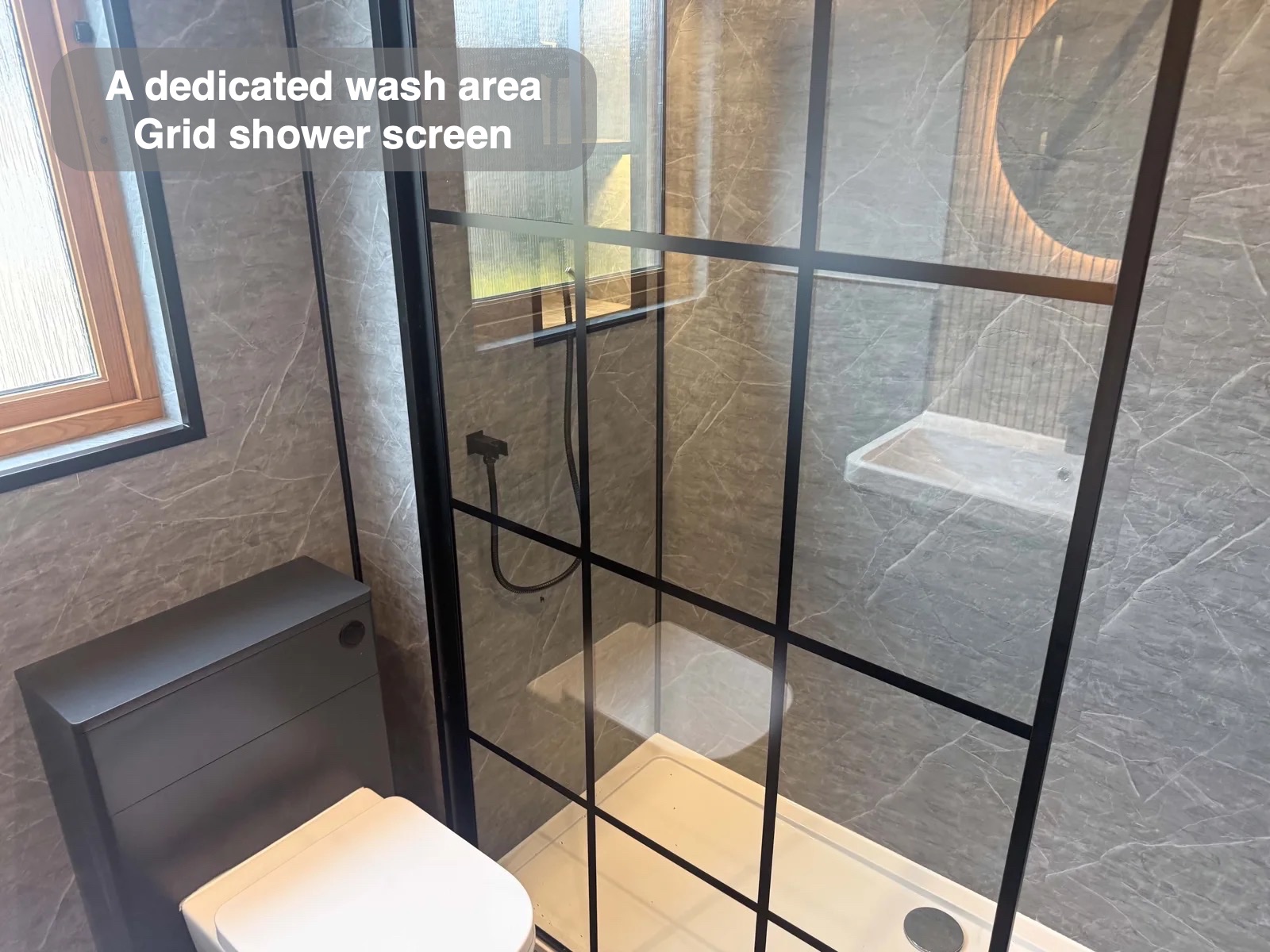

The long shower tray and transparent screen create a dedicated showering area while keeping views across the room. The black grid makes the glass a feature in its own right, picking up the dark fittings and furniture elsewhere.
During design, we considered a 1700 × 700 mm tray because an 800 mm-wide option would leave a narrower space between the screen and the vanity. That is a useful example of why we assess the shower and neighbouring furniture together. A larger shower footprint is only one part of the decision; the approach to it and the room beside it also need attention.
The selected 700 mm-wide tray is the arrangement specified for this project. Its edge remains visible above the bathroom floor. An open shower does not automatically mean level access, and the screen and entrance still need to balance an open appearance with water containment.

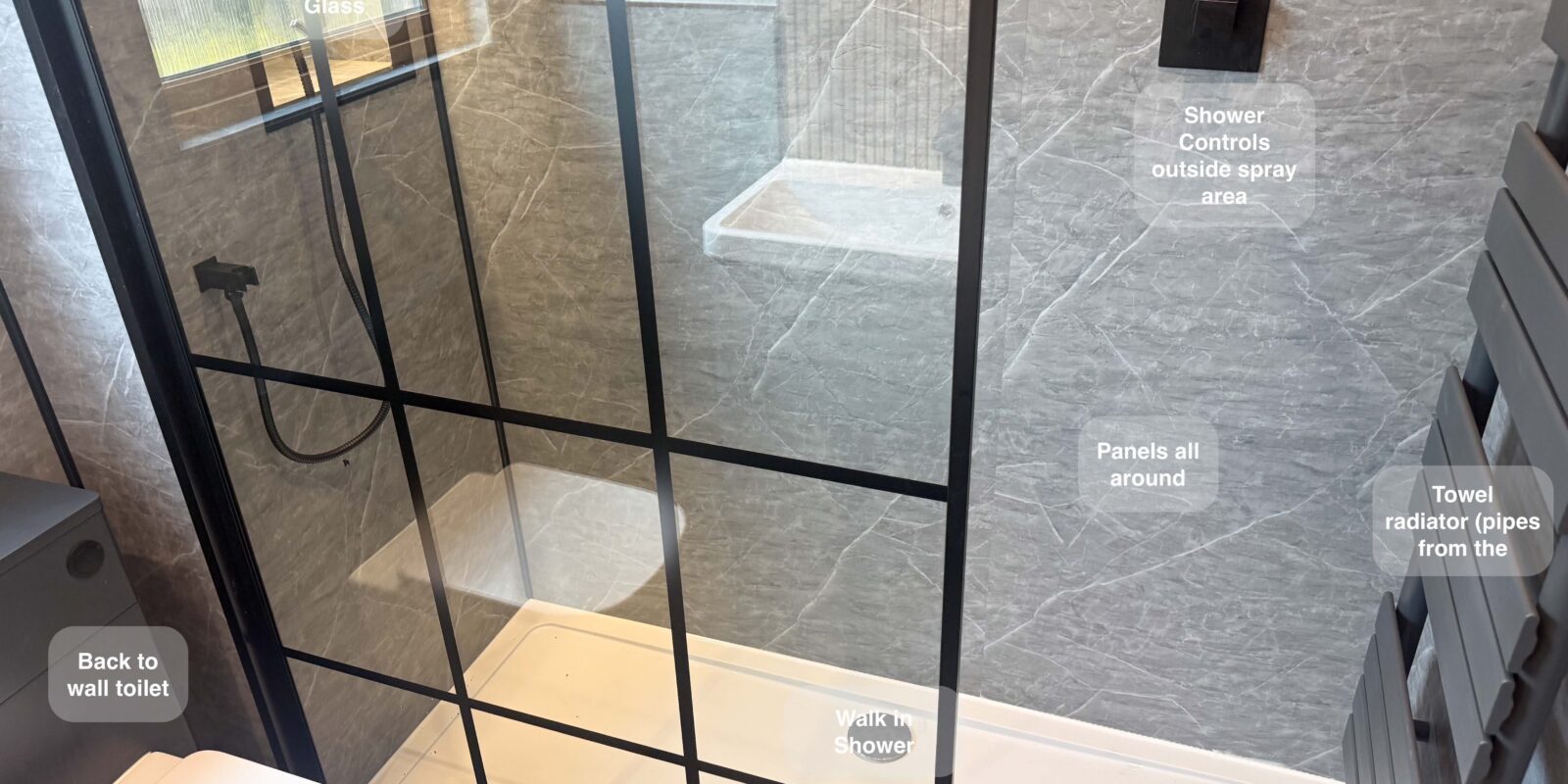

Controls outside the spray area

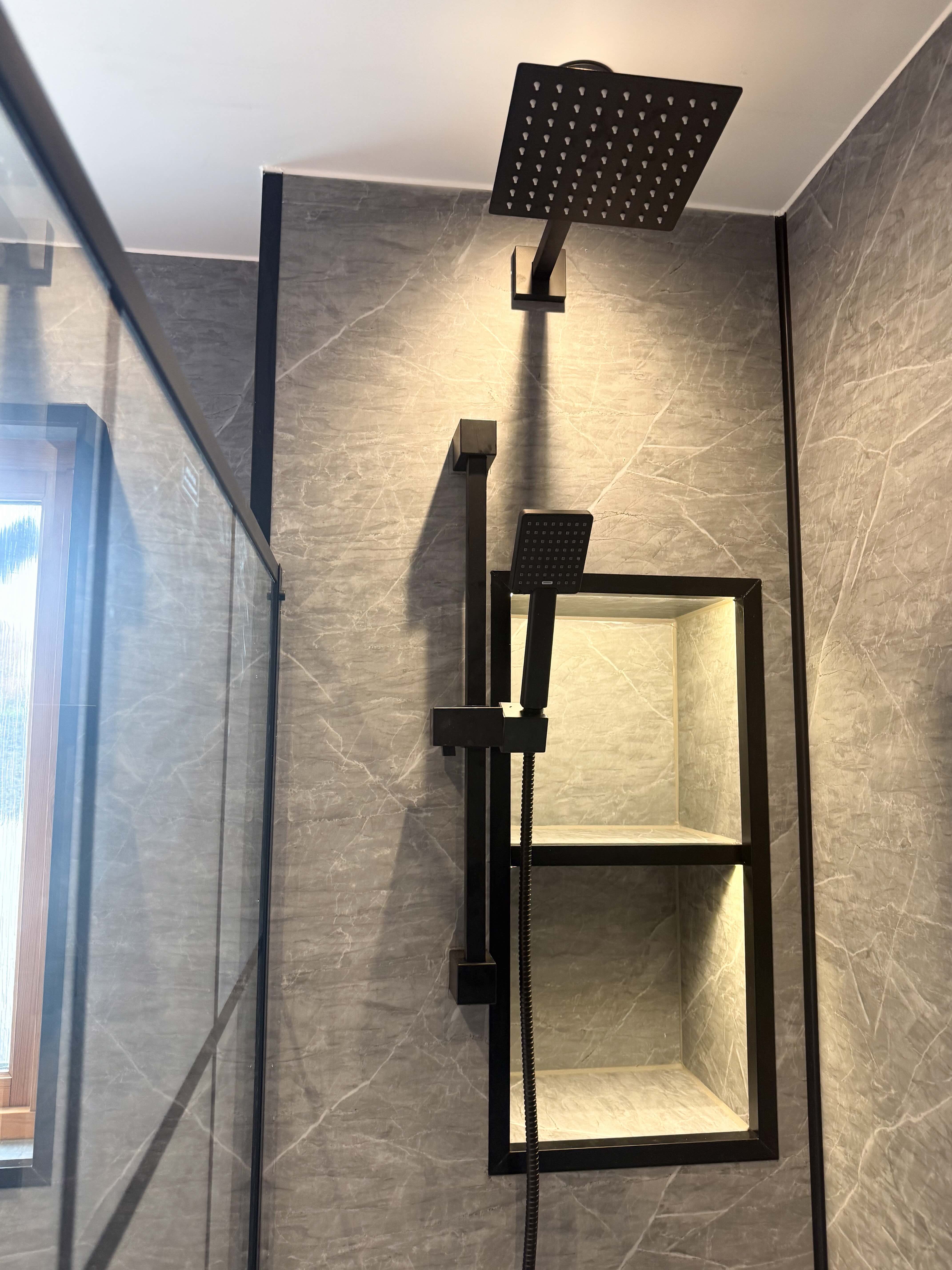

The black shower has an overhead outlet and a separate handset on a rail. Its controls sit outside the main spray area, so their position is considered separately from where someone stands to shower.
This was part of our written installation specification. Planning the controls early helps connect the pipework and the way the shower will be used, rather than treating the visible fittings as independent choices. The handset provides another option for directed rinsing and ordinary cleaning.
Bottles have a place within the wall

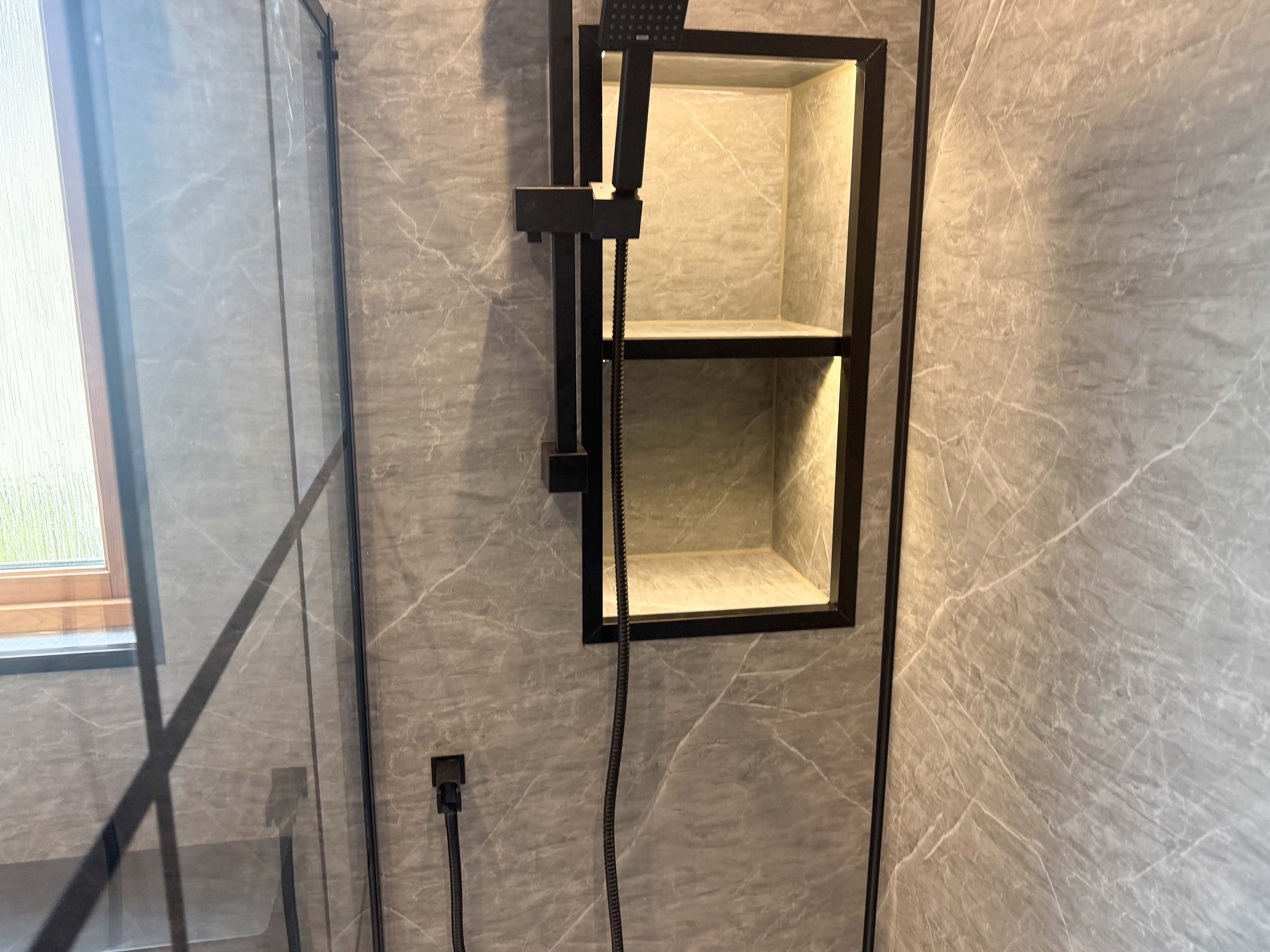

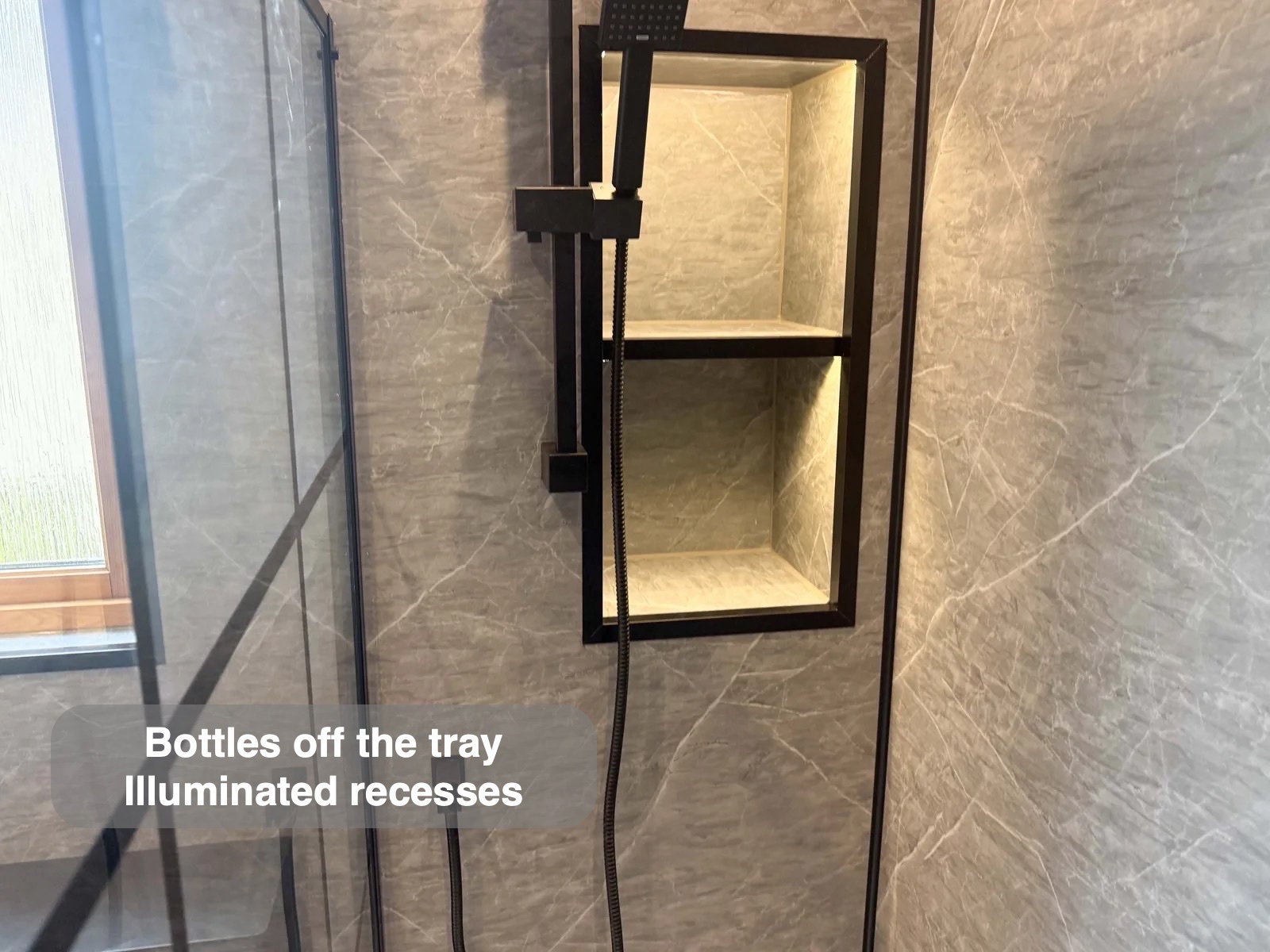

Two illuminated recesses sit beside the shower fittings. Their inset shelves offer dedicated positions for bottles instead of relying on the edge of the tray. Black borders define the openings against the grey panels, while the lighting picks out the shelves.
For us, useful shower storage starts with what needs to go inside it. Bottle sizes, the space to lift them out and where the shelves sit relative to the showering position are worth discussing before the wall is finished. The photographs show the two recesses and their lighting; they do not establish a measured reach or storage capacity.

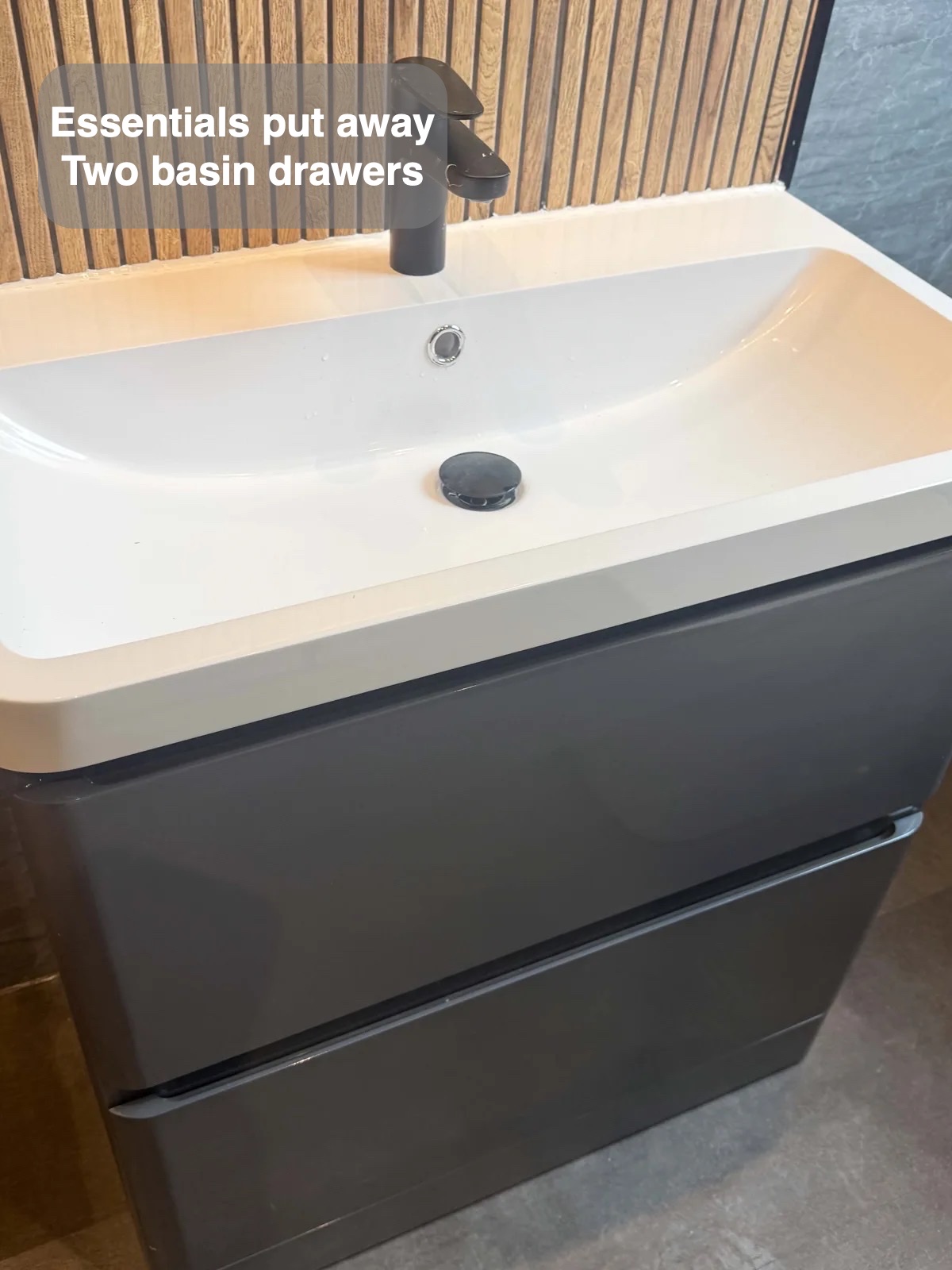

Drawers beneath the basin

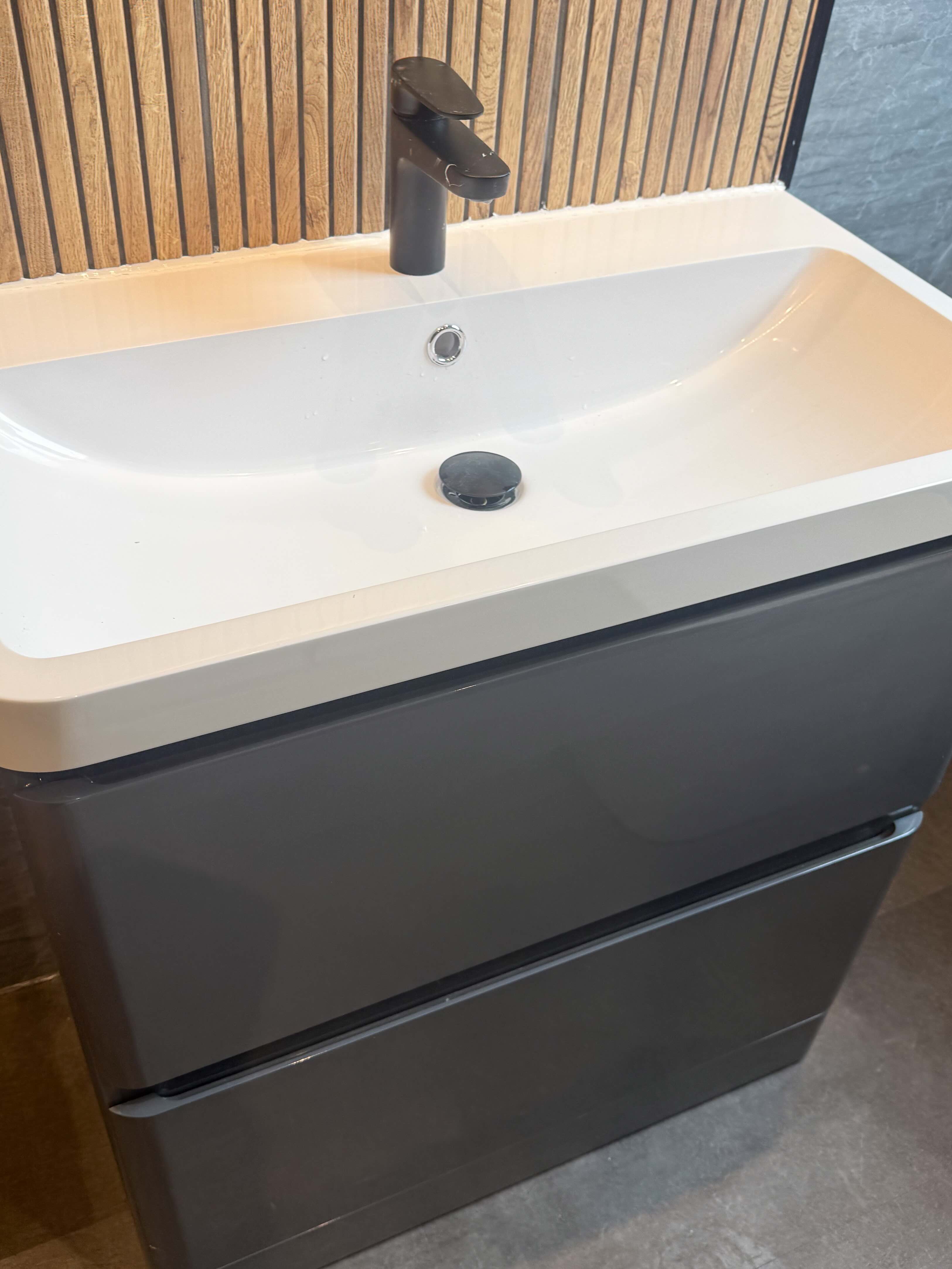

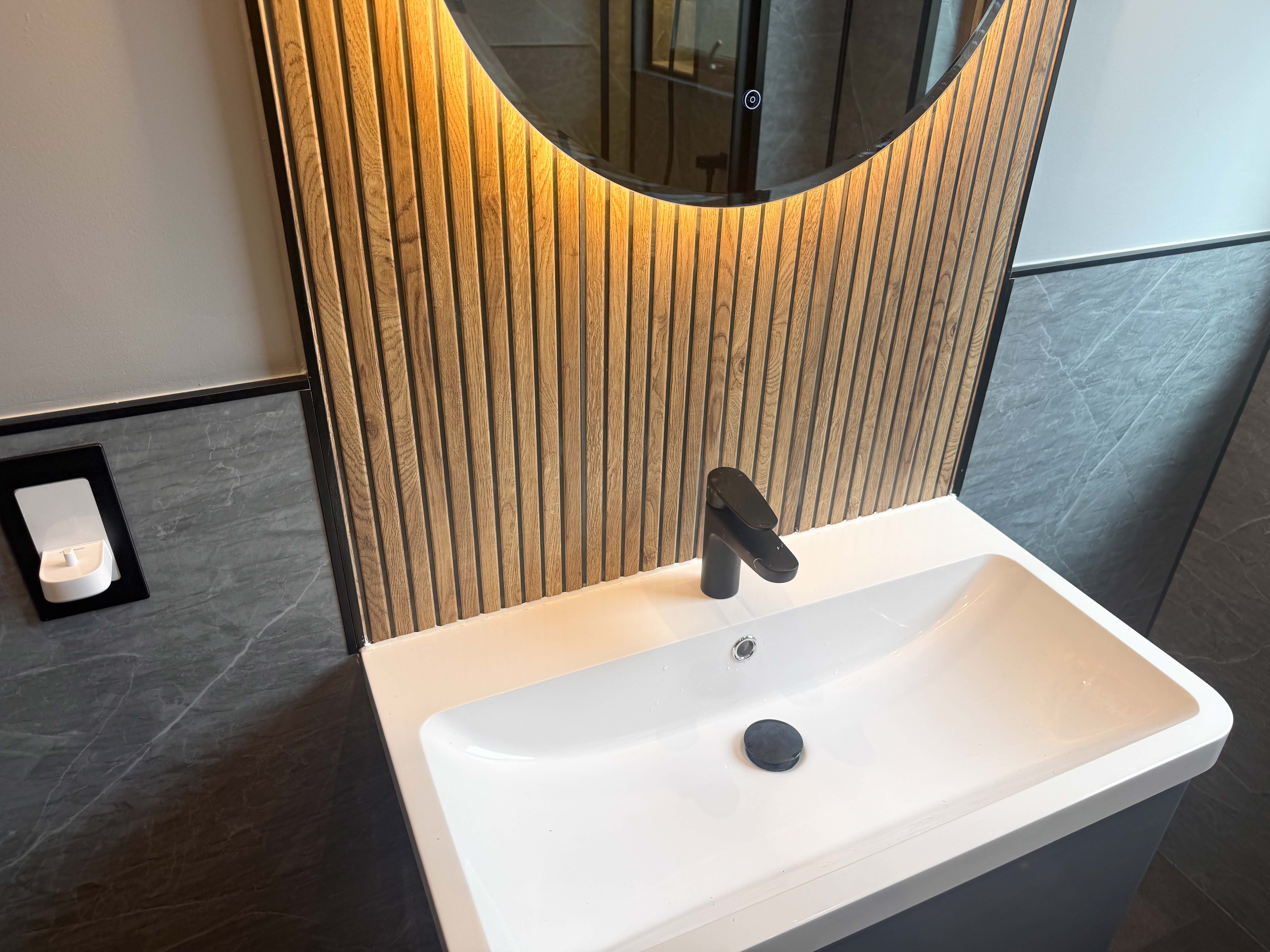

The dark vanity combines a broad white basin with two drawers beneath it. This puts enclosed storage directly at the wash area, giving toiletries a place beside the point where they are used. It is a change from the original pedestal basin and separate tall cupboard arrangement, rather than the room's first storage.

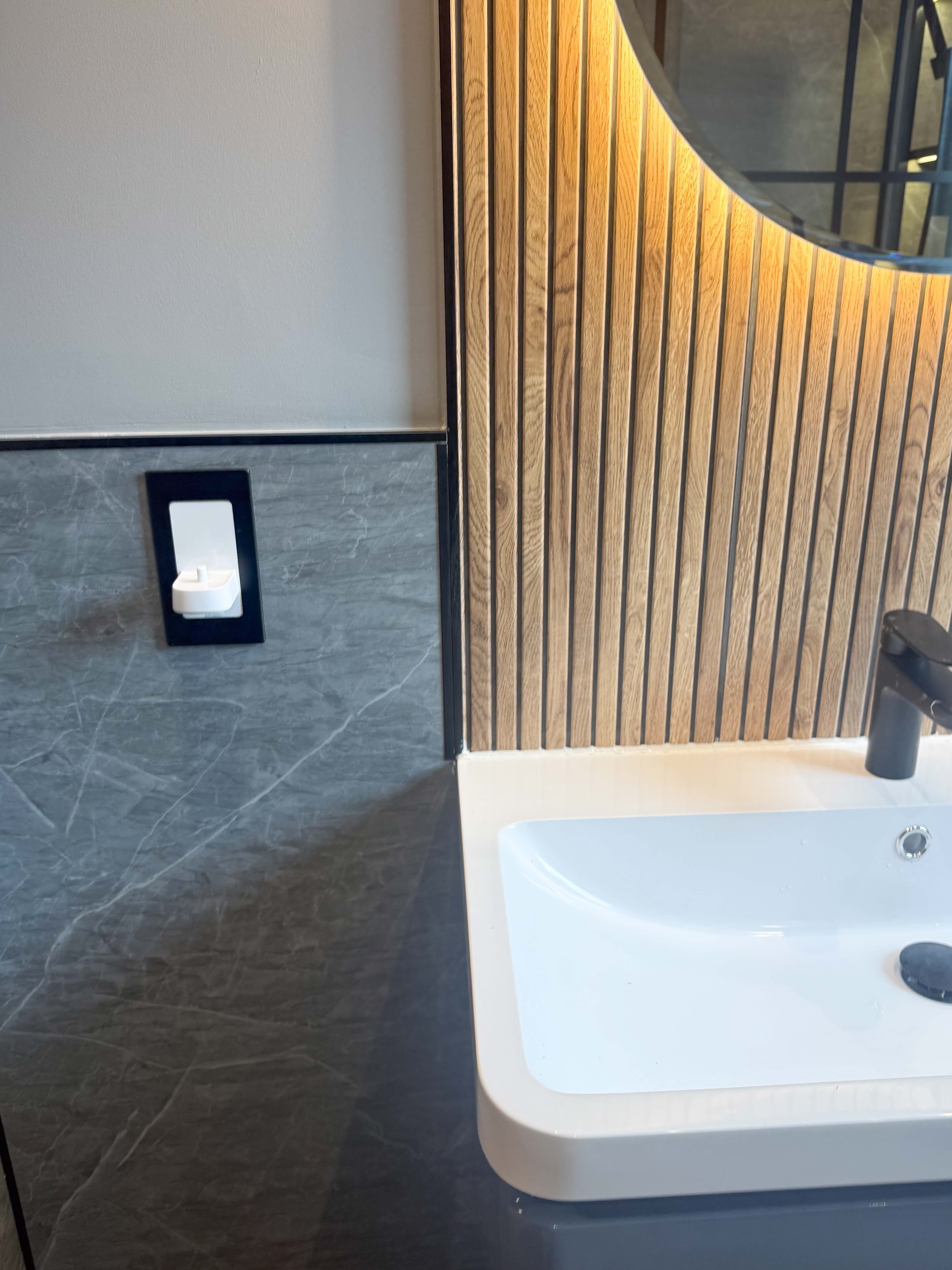

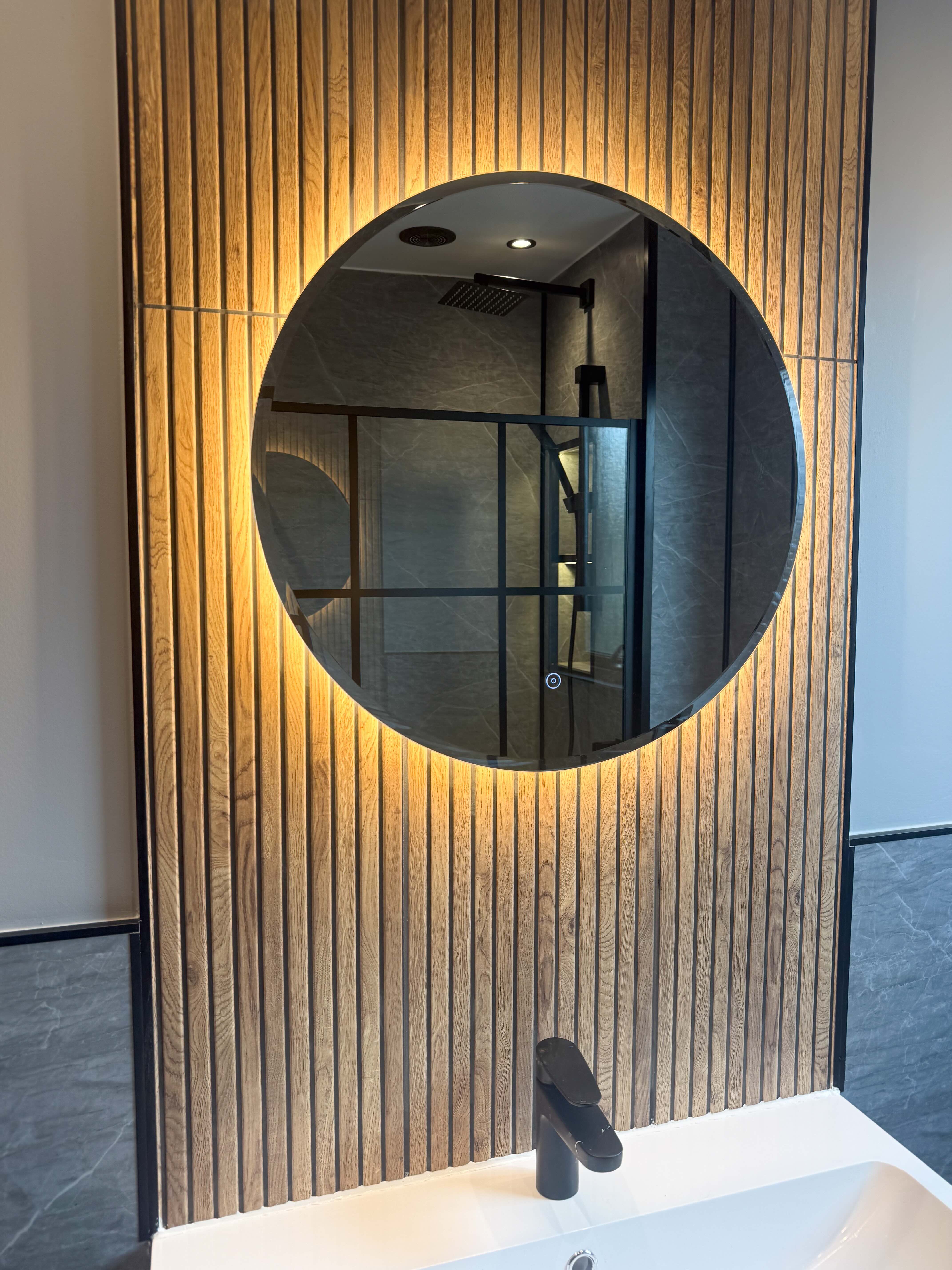

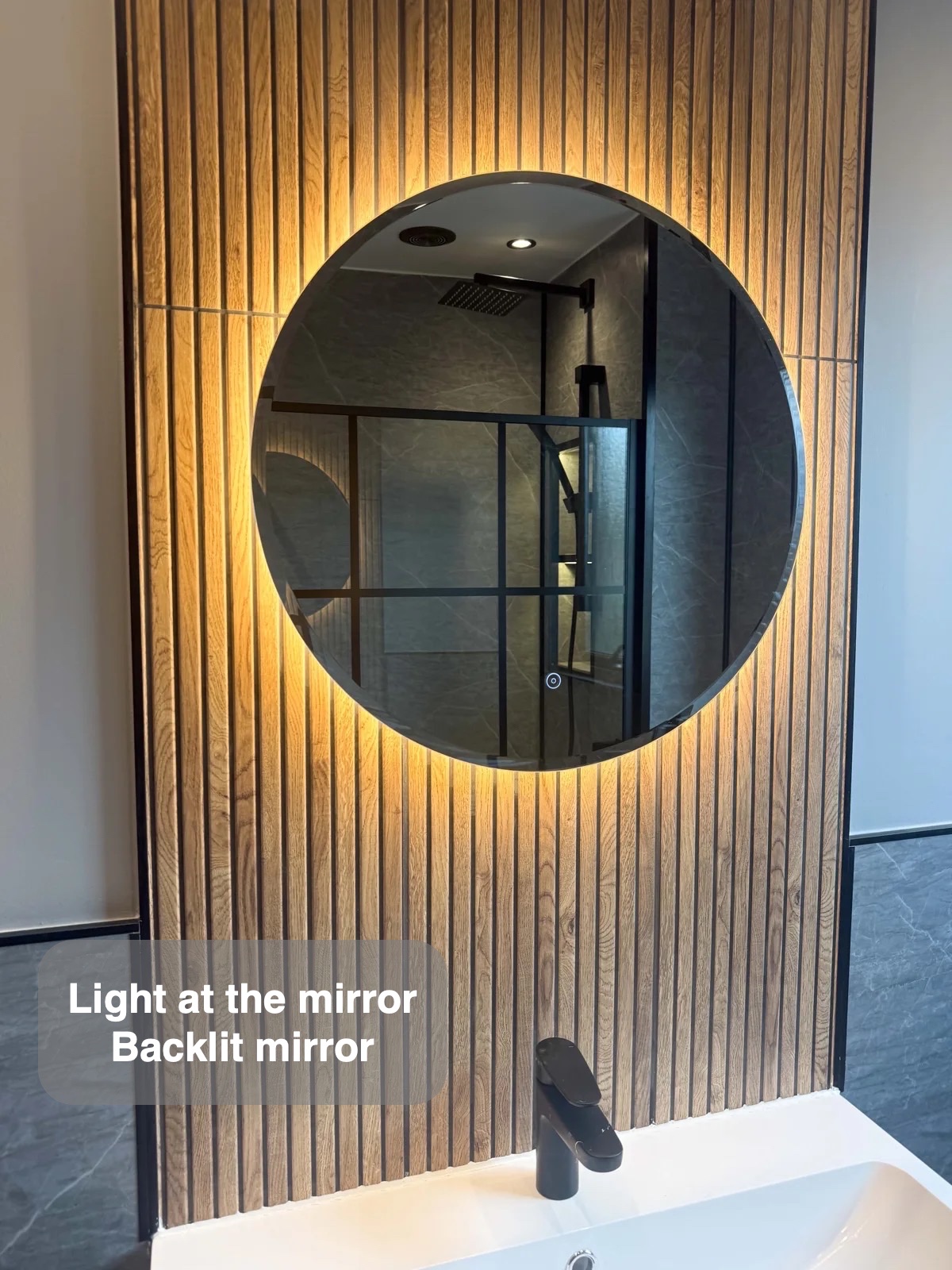

The round backlit mirror sits against a vertical wood-effect feature. Its warm appearance provides a contrast to the grey wall finish and dark furniture. Around it, the combination of half-height panelling and a painted upper wall gives the basin area a different treatment from the shower.
That wall treatment followed the design discussion: we revised the basin wall to the requested height instead of simply repeating the shower finish everywhere. The result illustrates how different parts of one room can be coordinated without requiring every surface to be identical.
Practical finishing details

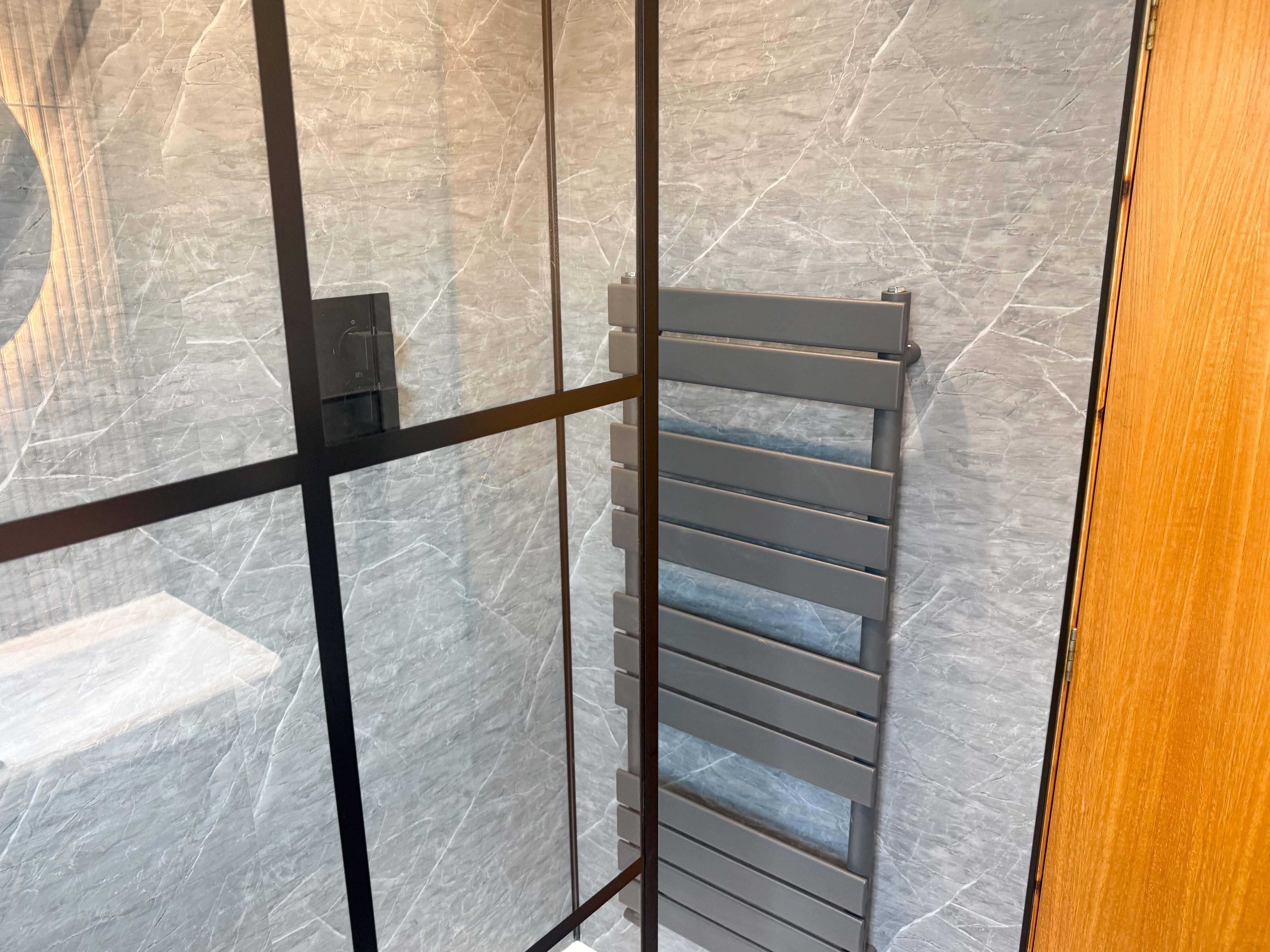

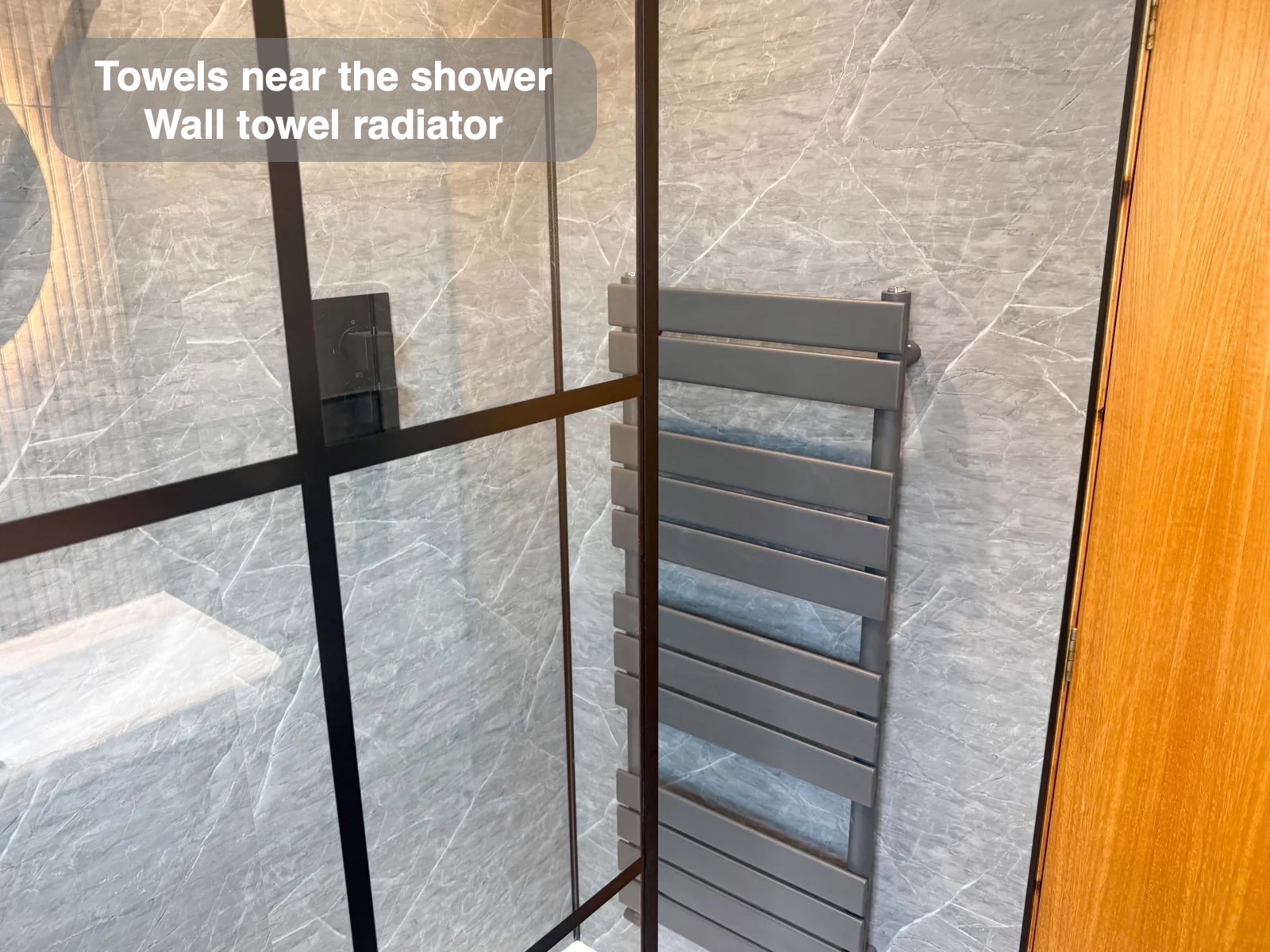

The grey ladder radiator sits on the wall opposite the shower, with visible wall-fed connections. The grey floor, pale ceiling and recessed lights complete the room's overall palette, while the original timber window brings a warmer material into the shower-room setting.
Broad wall panels and vinyl click flooring change the surfaces involved in regular upkeep, but fittings, panel joints and seals still need routine cleaning and care. We consider those maintenance tasks alongside colours, storage and the layout itself.
Discuss your bathroom with us
This project shows how we bring room planning, product choices and installation details together. If you are considering a bathroom refurbishment around Balmedie, start by identifying what you would most like to change about your daily routine. You can book a quotation visit with us to discuss the possibilities for your room.
Room layout

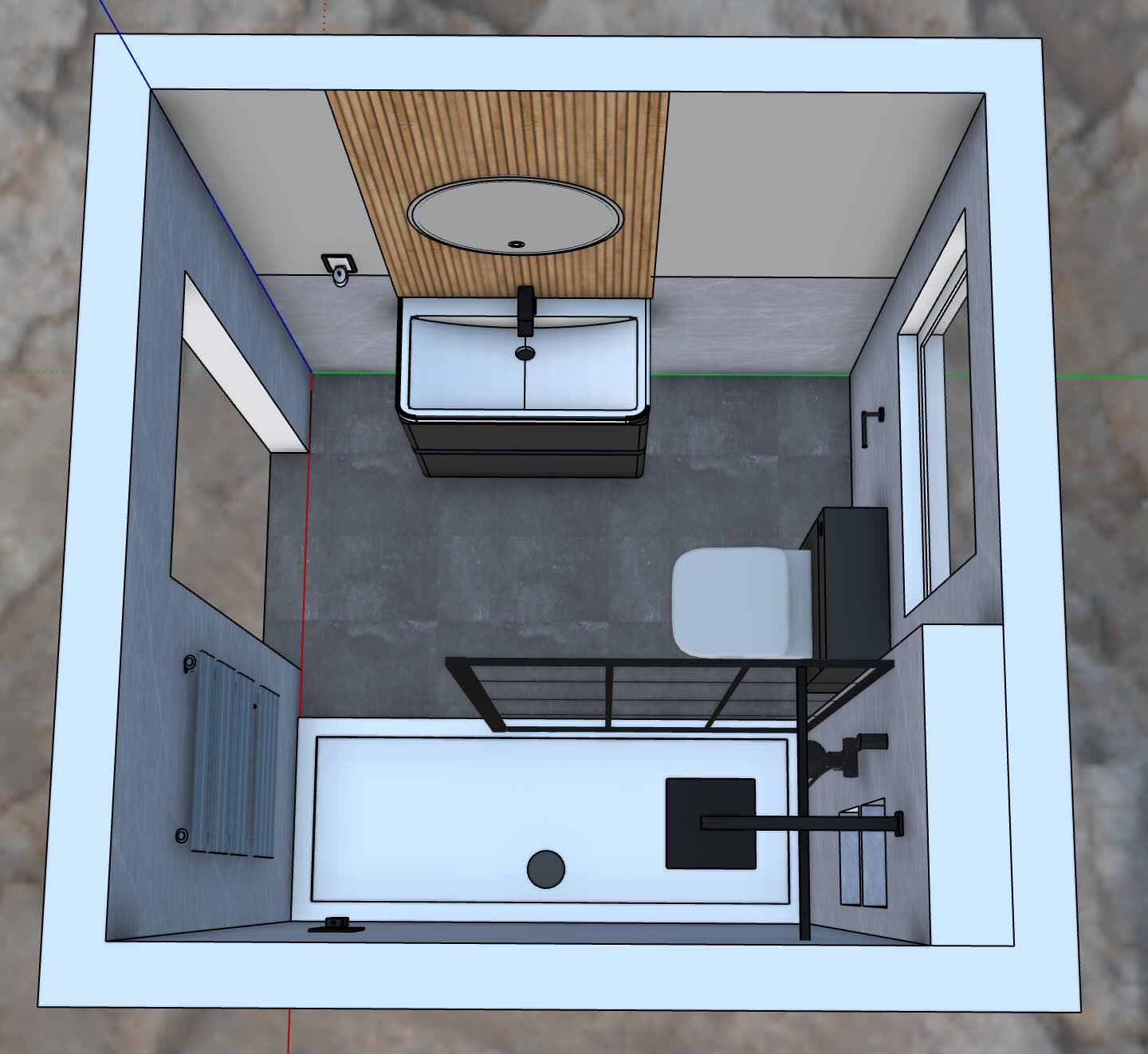

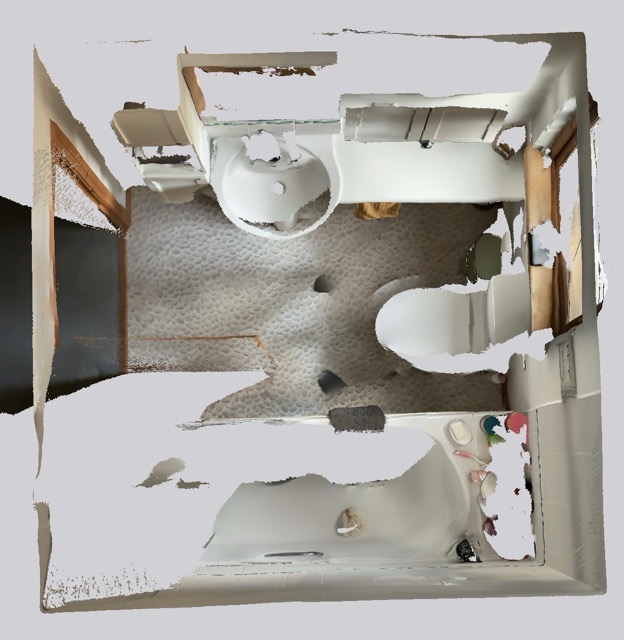

The original-room scan and design proposal show the room from above. The completed photographs record the installed result.
