A Bath and Compact Walk-in Shower in Ellon

We redesigned this Ellon bathroom around a clear priority: make more room for showering while keeping a separate bath. The original room already had both, but a curtained shower sat behind a solid partition beside the entrance. We removed that division, planned a compact glass shower and chose a shorter bath, balancing the fittings with the route through the room.

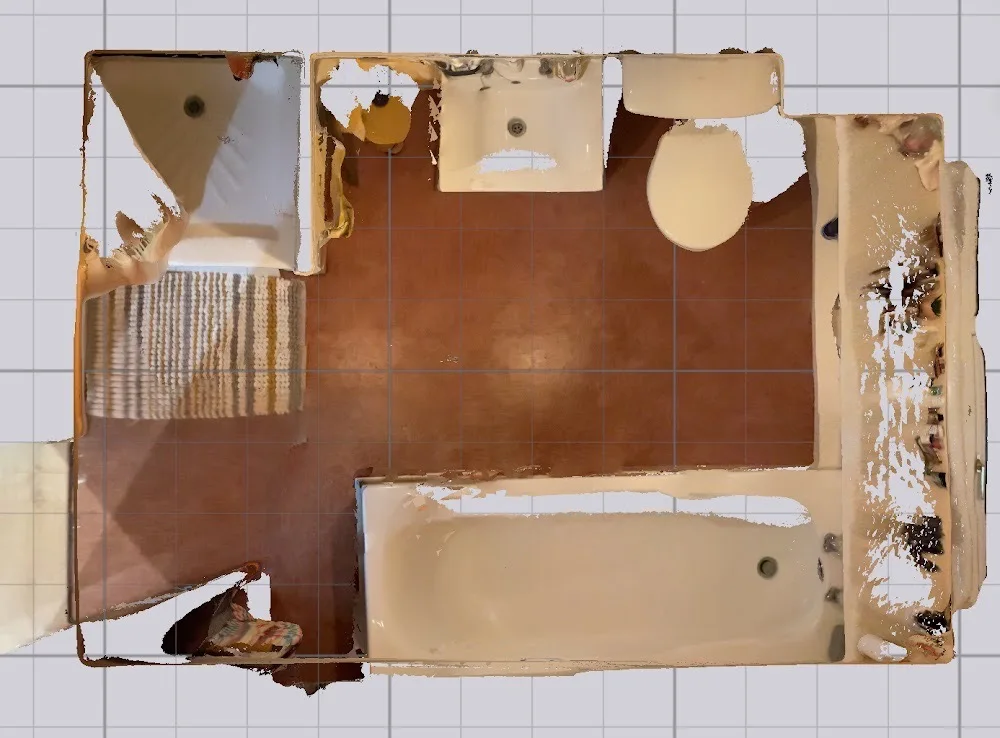

Scan — Original Bathroom Top View — Ellon bathroom
Scan — Original Bathroom Top View. Original room scan.

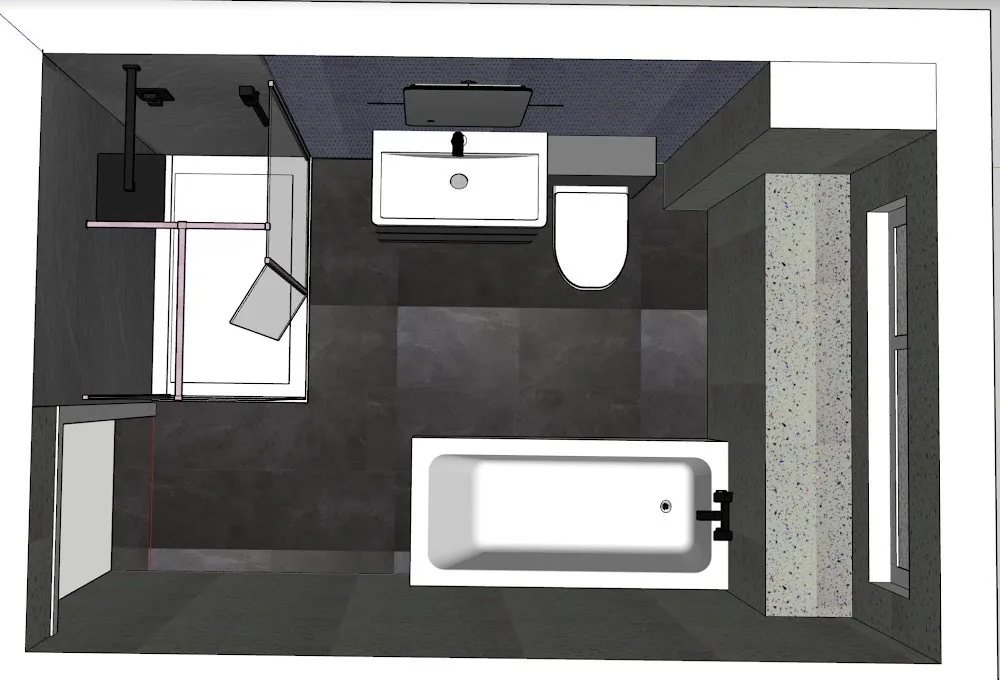

Design Layout — Planning Only — Ellon bathroom
Design Layout — Planning Only. Planning proposal only; black taps and earlier wall finishes were superseded. Not an as-built plan.

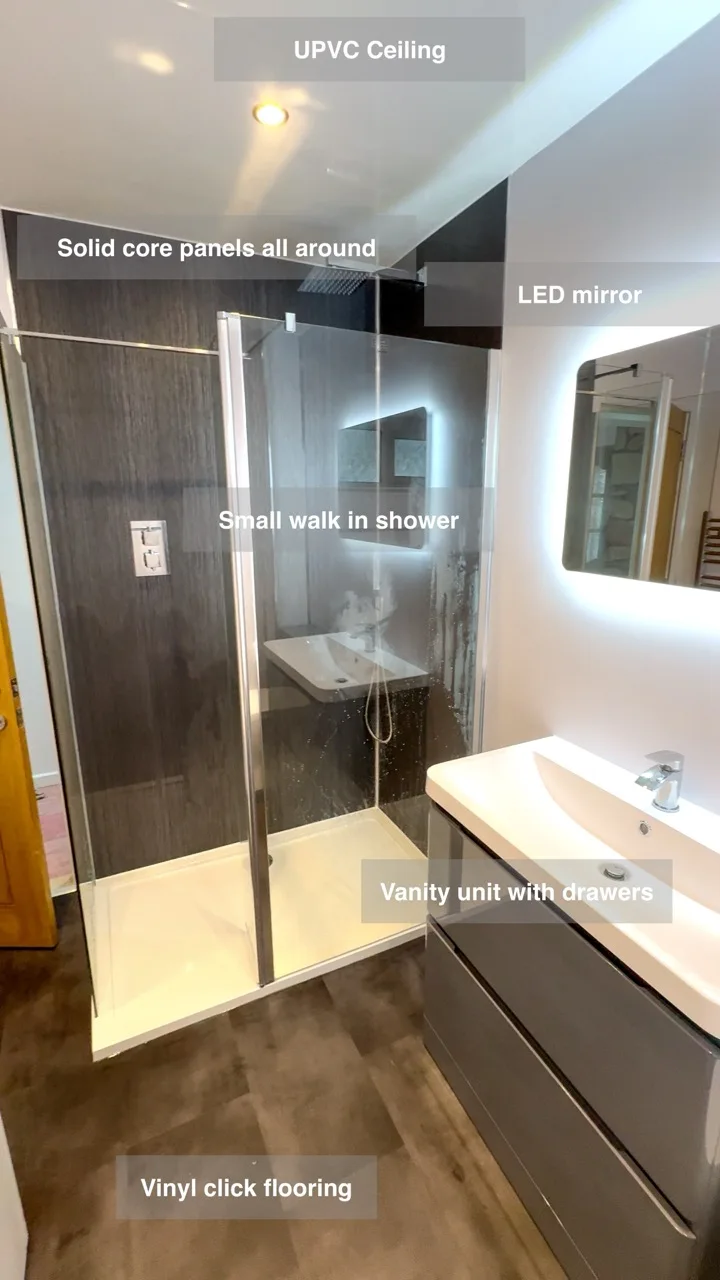

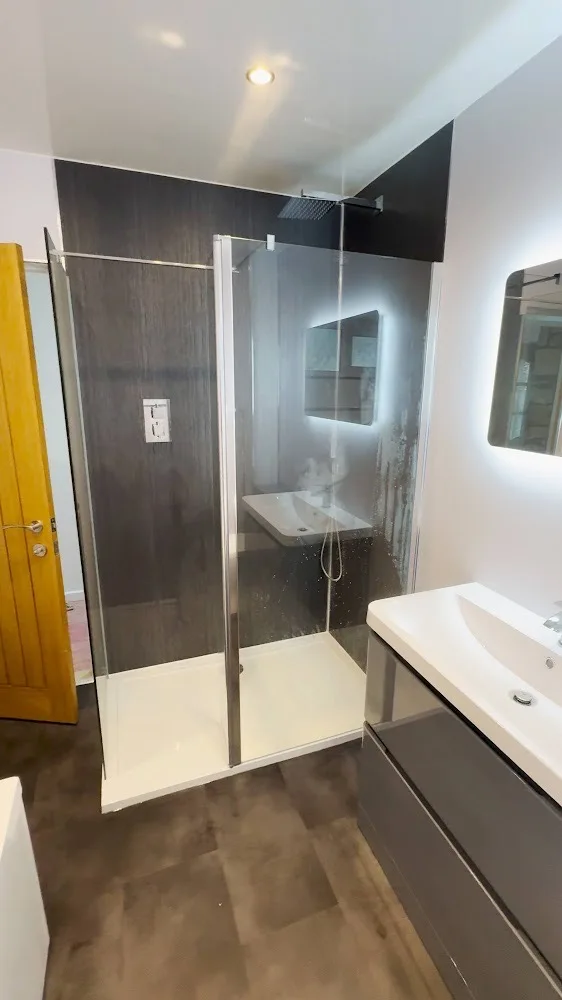

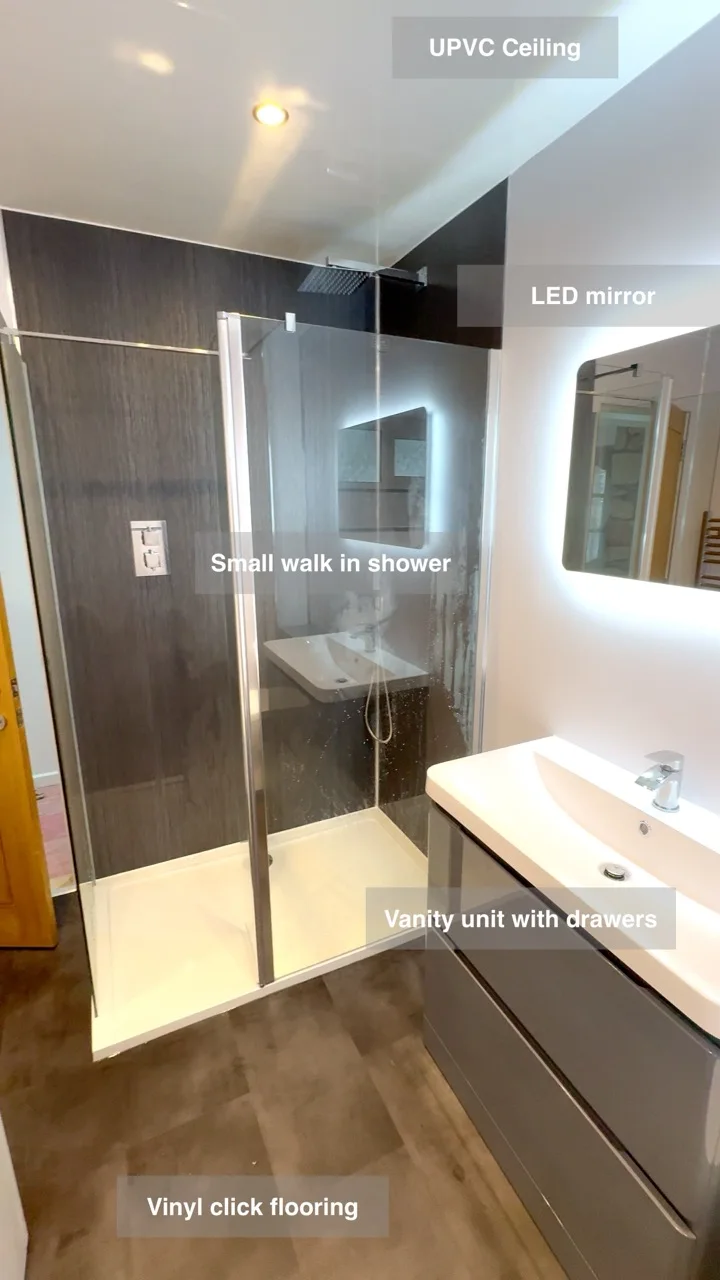

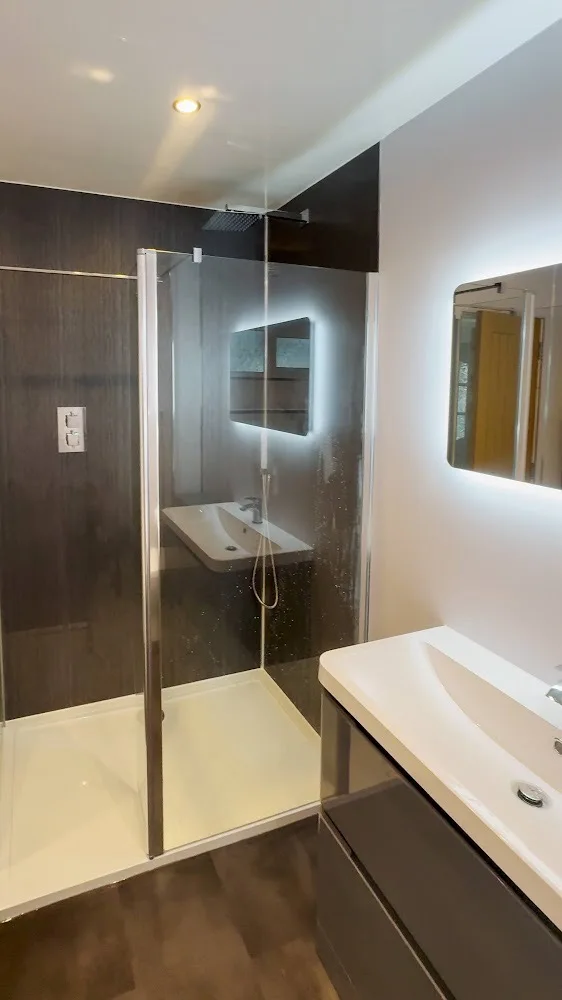

Shower and Basin Overview — Ellon bathroom
Shower and Basin Overview.

A shower planned around the whole room

The homeowners wanted the largest practical shower and preferred fixed glass to an enclosure with tracks and hinges to clean. We explored different orientations before agreeing a walk-in arrangement with a flipper panel. The final installation brief specified a 1300 × 800 mm shower, with Linear Graphite panels giving this corner a distinct finish.

Clear glass opens the view towards the basin and lets the panel texture remain visible. The small hinged panel provides some flexibility at the entrance. For a compact walk-in shower, we consider the opening, the position of the shower head and where water can splash, alongside the tray dimensions. A flipper helps contain water, but a short open shower still needs careful use and well-finished surrounding joints.

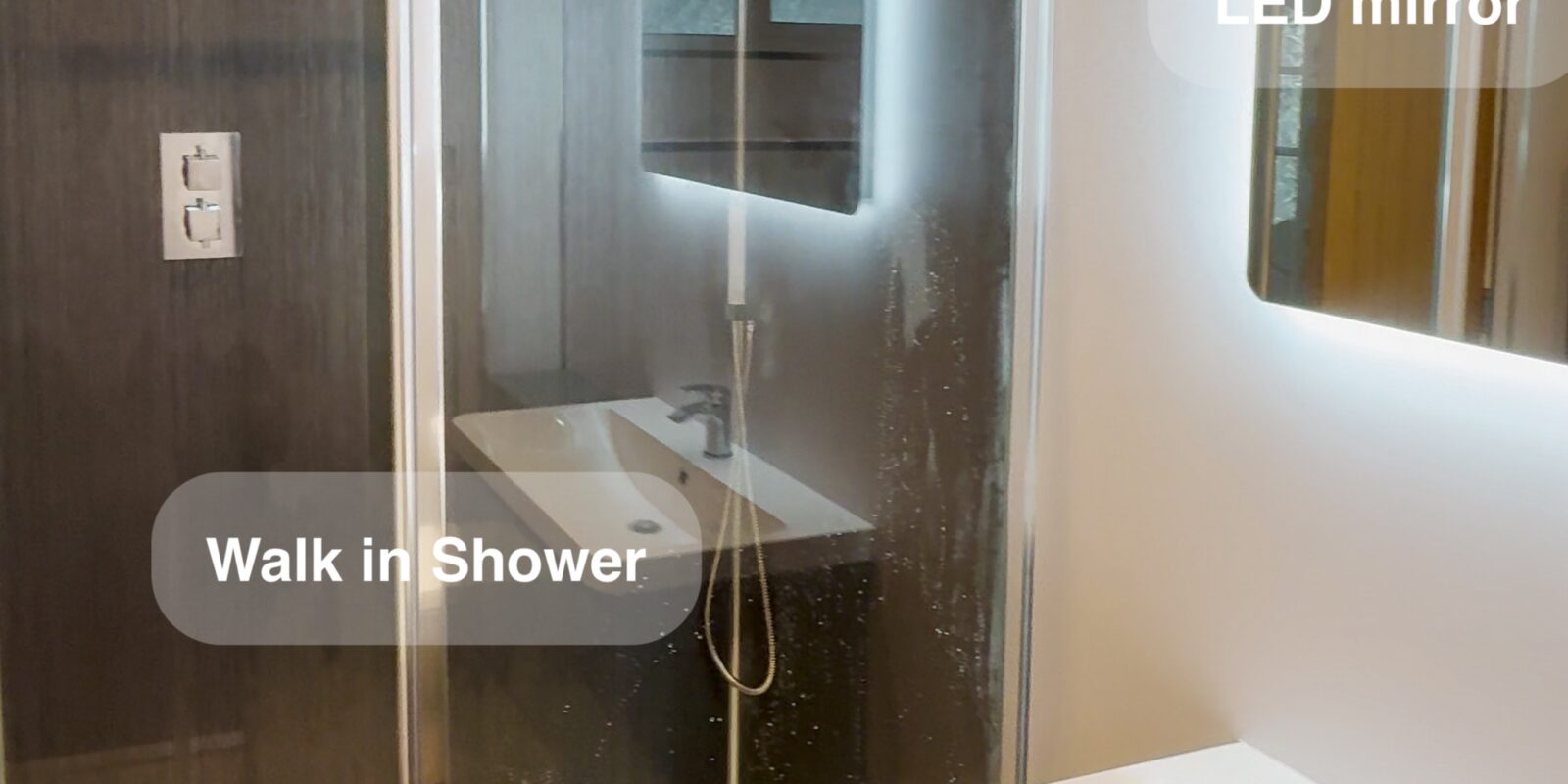

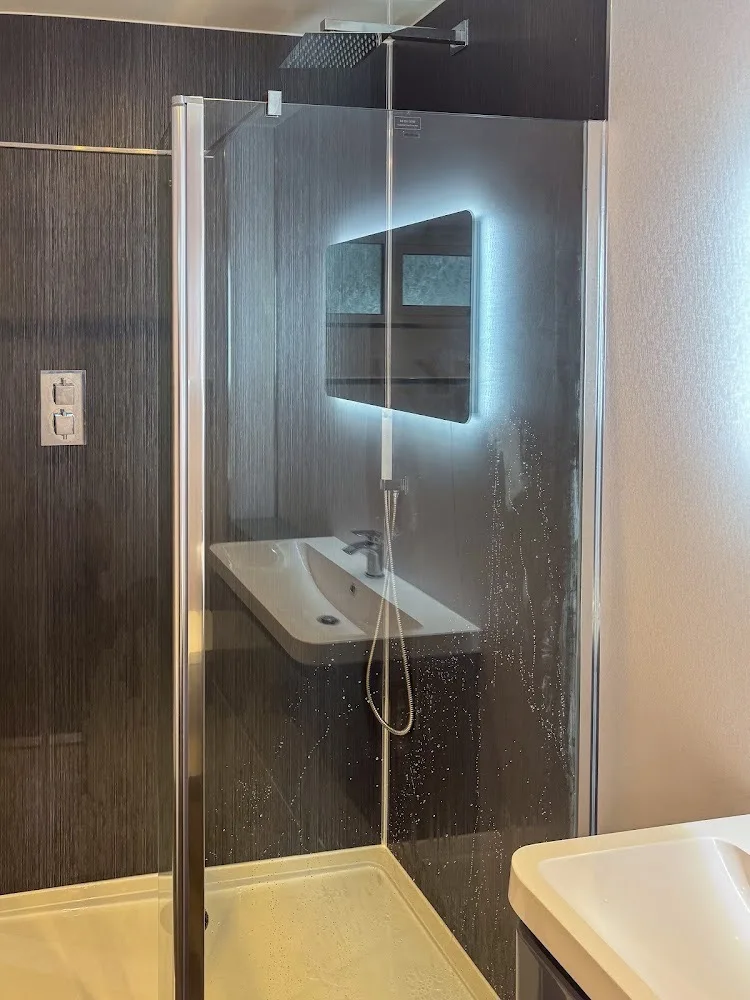

Walk In Shower — Ellon bathroom
Walk In Shower.
Concealed Shower Controls — Ellon bathroom
Concealed Shower Controls.
Shower Handset — Ellon bathroom
Shower Handset.
Overhead Shower — Ellon bathroom
Overhead Shower.
Before and After — Shower — Ellon bathroom
Before and After — Shower. A clear glass shower replaces the curtained cubicle

A shorter bath makes the layout work

Keeping a bath mattered, although showering took priority. We used a 1500 mm bath rather than squeezing a longer model into the same arrangement. That choice preserves a bathing option and makes the route between the bath and shower more workable.

Bath length alone does not tell us whether a layout will feel comfortable. We compare the bath, shower and approach together, and discuss the bathing space inside a shorter model. Here, the single-ended bath sits along the window side of the room, with a chrome mixer at its end. The retained towel radiator remains close to the bath and entrance, giving towels a useful hanging place without adding another cabinet.

Bath and Window Overview — Ellon bathroom
Bath and Window Overview.

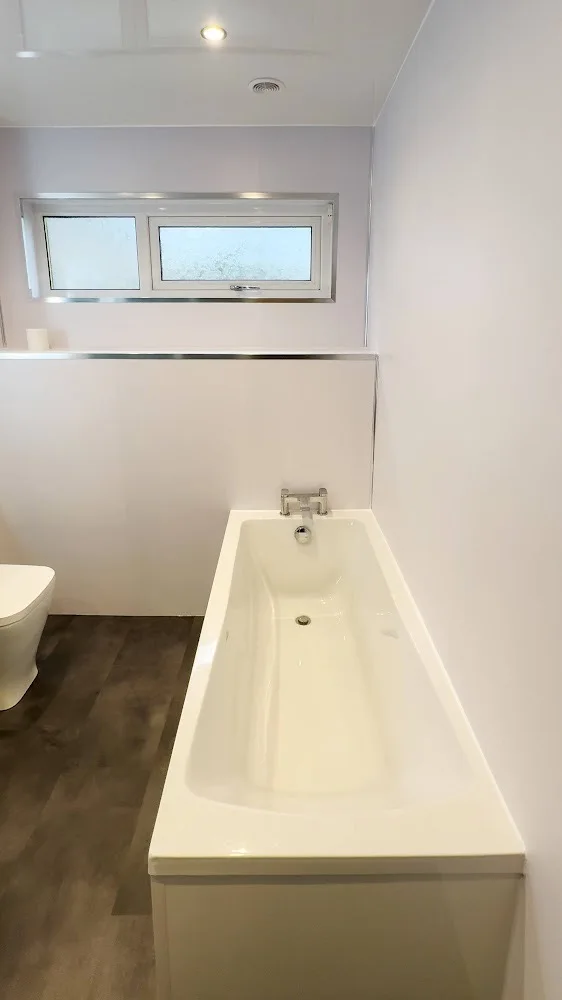

Shorter Bath — Ellon bathroom
Shorter Bath.
Chrome Bath Tap — Ellon bathroom
Chrome Bath Tap.

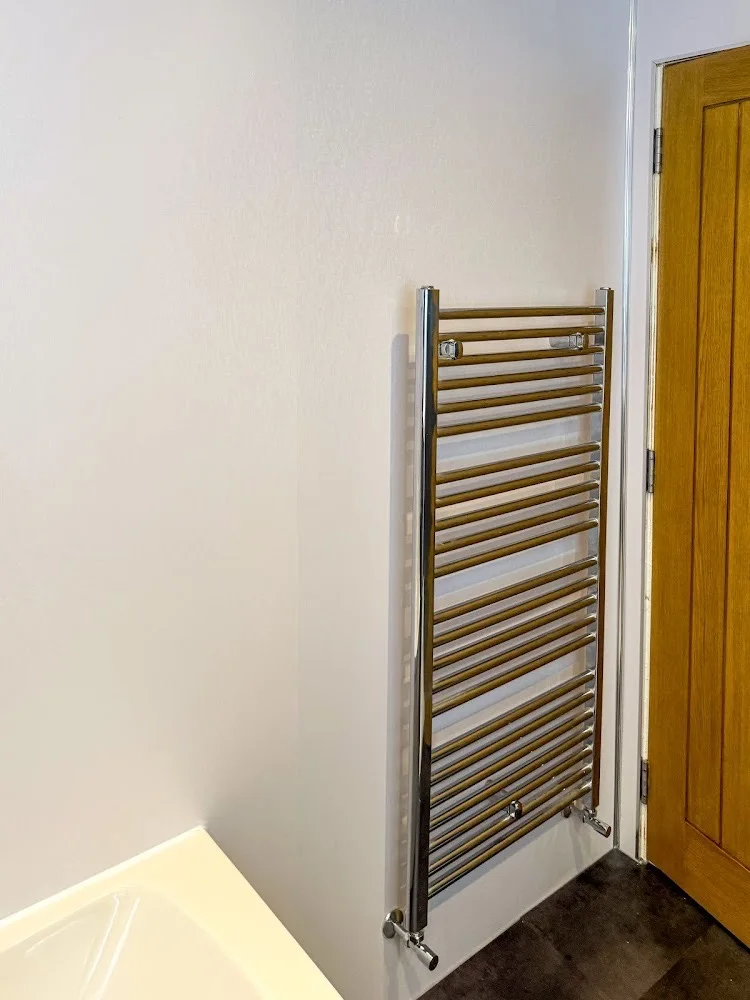

Retained Towel Radiator — Ellon bathroom
Retained Towel Radiator.
Before and After — Bath — Ellon bathroom
Before and After — Bath. A shorter bath preserves the bathing option
Before and After — Entrance — Ellon bathroom
Before and After — Entrance. A shorter bath frees the route between fittings
Before and After — Radiator — Ellon bathroom
Before and After — Radiator. The towel radiator remains beside the bath end

Storage where the daily routine happens

The new basin furniture brings two broad drawers beneath the washing area. Toiletries can be put away close to where they are used, leaving the basin edge easier to keep clear. Beside it, a matching furniture unit conceals the toilet cistern and connects the fittings visually.

We plan storage around access as well as appearance: drawers need room to open, and a cistern still needs maintenance access. Above the basin, an illuminated mirror replaces the old mirror and helps define the washing area. Chrome fittings coordinate the basin, bath and shower; these were the final choice after the earlier black-finish proposal was reviewed.

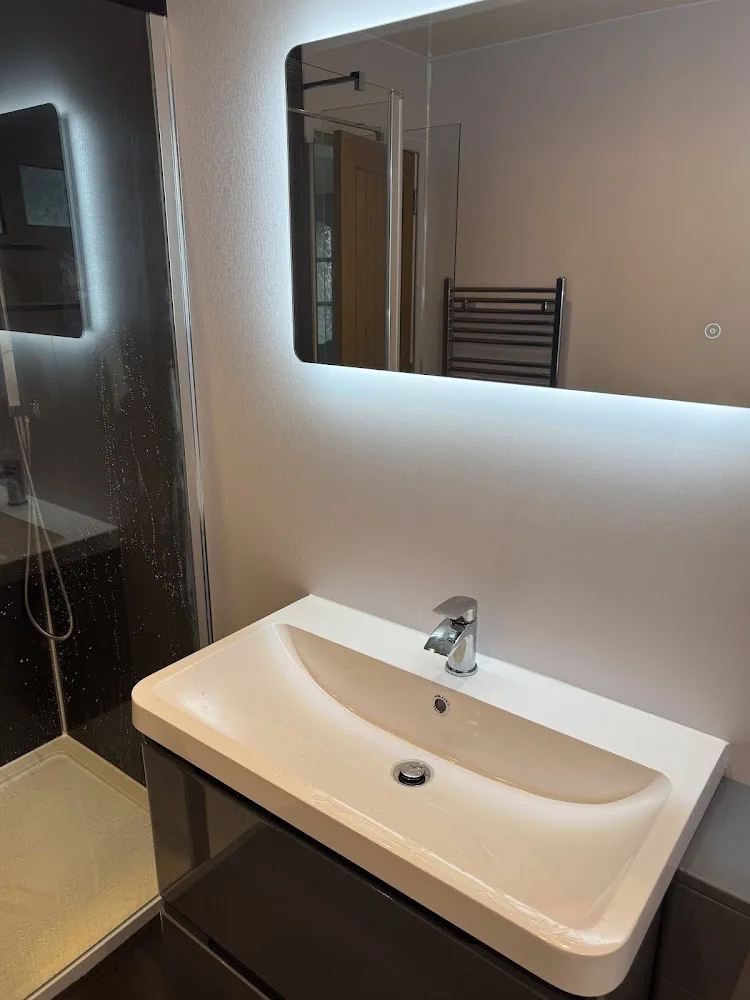

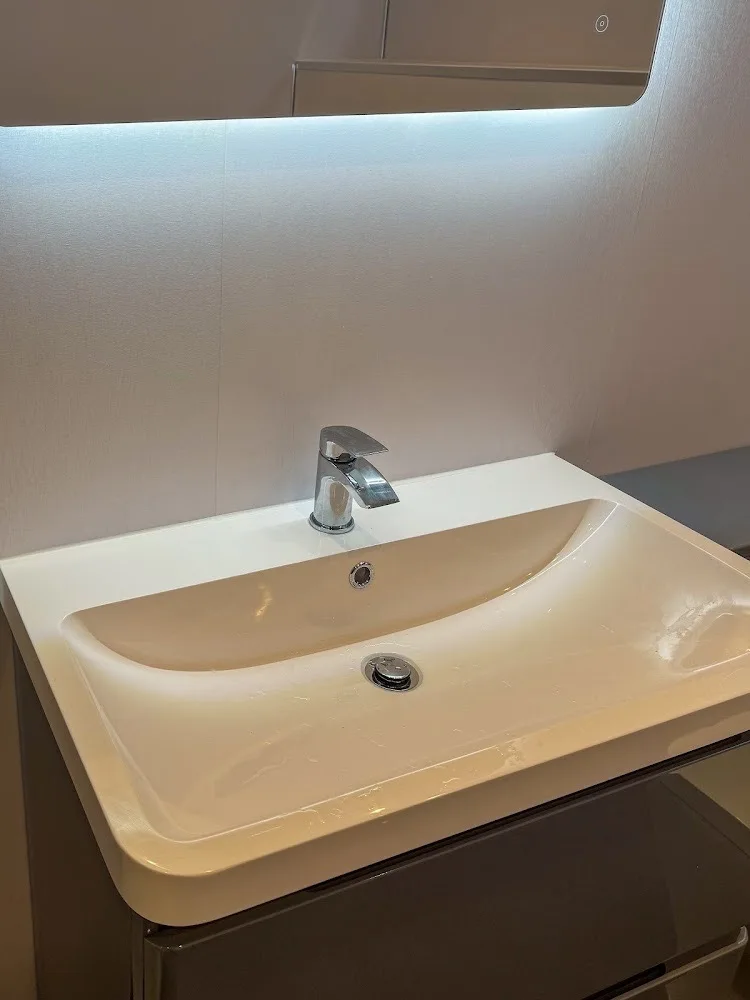

Basin and Illuminated Mirror — Ellon bathroom
Basin and Illuminated Mirror.
Basin Drawer Detail — Ellon bathroom
Basin Drawer Detail.
Concealed Cistern Unit — Ellon bathroom
Concealed Cistern Unit.
Before and After — Toilet — Ellon bathroom
Before and After — Toilet. A furniture unit conceals the cistern
Before and After — Basin — Ellon bathroom
Before and After — Basin. Wide drawers below the basin

A calmer finish from floor to ceiling

Frosty White Matt panels surround most of the room, with the darker Linear Graphite finish concentrated in the shower. This keeps the contrast purposeful while the lighter walls connect the bath, basin and toilet. The window wall also gains a broad panelled surface in place of the previous decorative tile border.

Slate-effect vinyl click flooring anchors the room, while the white panelled ceiling, recessed lights and extractor complete the scheme. Panels reduce the number of conventional grout lines to maintain, although edges, fittings and seals still need routine cleaning and inspection. We consider those junctions when planning a refurbishment, because the smaller details affect how a bathroom works long after the main fittings are in place.

Planning your bathroom with us

If you want a separate bath and shower in a compact room, start by deciding which deserves the most space and which storage you use every day. We can then compare layouts and finishes with you, checking how the choices work together. Explore our refurbishment process and book a quotation visit with us to discuss your bathroom in Ellon or the surrounding area.

Window Wall Panels — Ellon bathroom
Window Wall Panels.
Ceiling and Downlights — Ellon bathroom
Ceiling and Downlights.
Shower Bath and Floor Overview — Ellon bathroom
Shower Bath and Floor Overview.
Before and After — Window — Ellon bathroom
Before and After — Window. Pale panels replace the tiled window wall
Before and After — Ceiling — Ellon bathroom
Before and After — Ceiling. Panelled ceiling and recessed lighting
Before and After — Floor — Ellon bathroom
Before and After — Floor. Slate-effect vinyl click replaces the tiled floor
